Direct Answer: An Xbox Series X that’s completely dead — no lights, no fan, no response to the power button — but that powers on when a disc is inserted, almost always has a cracked or torn Nexus connector on the mainboard. Saved Game repairs this at component level, soldering in a replacement connector rather than swapping the whole motherboard, backed by a 12-month warranty.Key Takeaways

The Nexus connector links the front panel (power button, eject button, status LED) to the Xbox Series X mainboard — when it cracks, the console can’t receive the power-on signal.
The giveaway symptom is a console that looks completely dead on the power button but powers on when a disc is inserted.
It’s a solder-level component repair, not a motherboard replacement — done properly, it’s a fraction of the cost of a new board.

Commonly damaged when people try and remove the power button cable without releasing the clip under neath.

If your Xbox Series X looks completely dead — no lights, no fan spin, nothing happens when you press the power button — but it powers on the moment you insert a disc, the fault almost certainly isn’t your motherboard, your power supply, or your power button itself. It’s a small flex connector on the mainboard called the Nexus connector, and it’s cracked, torn, or lifted off its pads.

What the Nexus Connector Actually Does

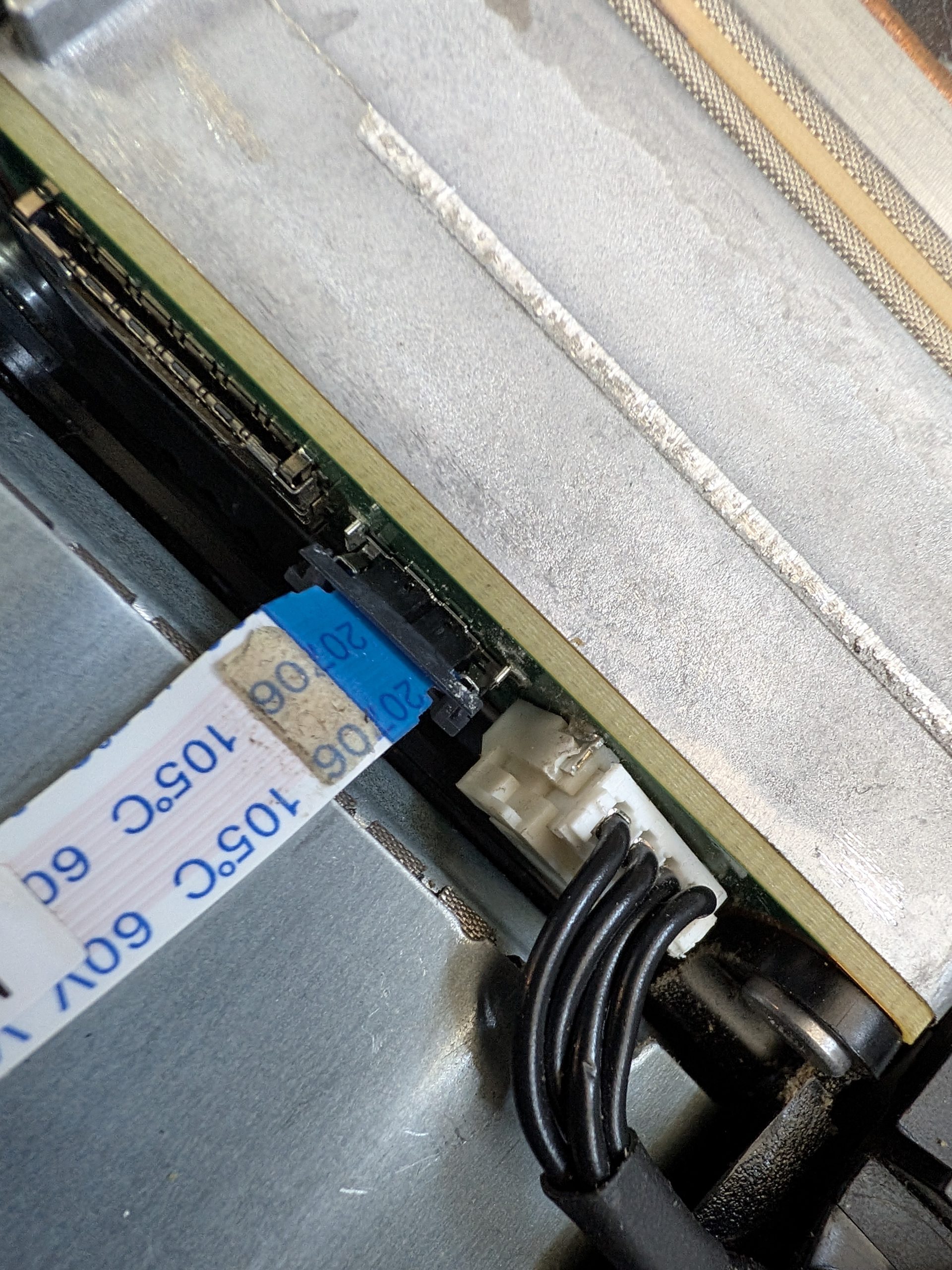

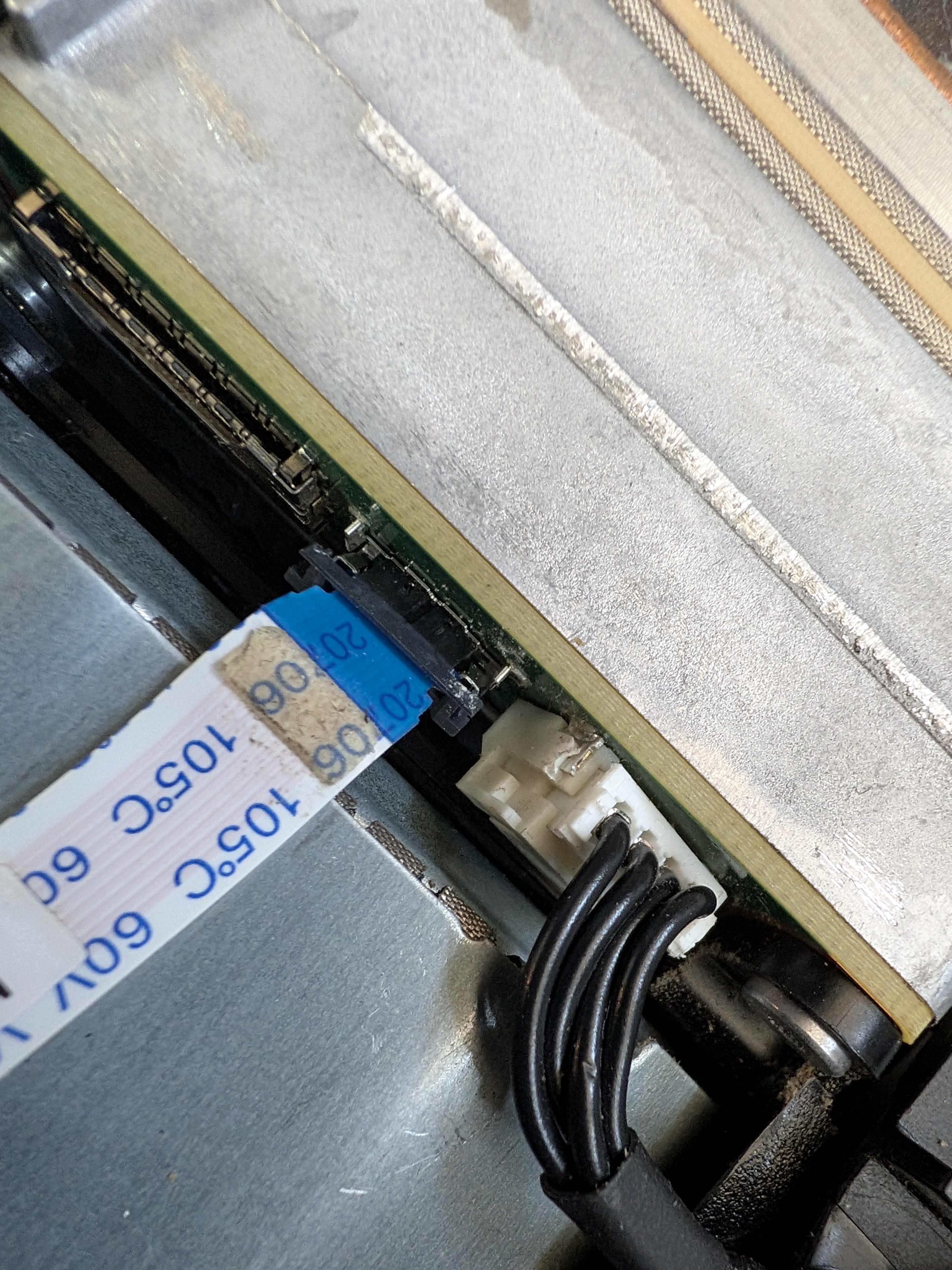

The Nexus connector is the socket on the mainboard that the front panel flex cable plugs into — the cable running the power button, eject button, and status LED. Every time you press power, that signal has to pass through this connector to reach the board. It’s a small, delicate surface-mount part, and it takes more mechanical stress over the life of a console than almost anything else inside it — every power press, every eject, is a tiny bit of strain on that joint.

Over time, or after a knock, a drop, or a rough front-panel removal during a previous repair, the connector can crack away from the board or tear internally. When that happens, the power-on signal simply never arrives — the console isn’t broken in any deeper sense, it just can’t hear you asking it to turn on.

How to Tell It’s the Nexus Connector

The clearest sign is a console that’s totally silent and dark on the power button — no fan, no LED, nothing — but which powers on by itself when you insert a disc. Most Xbox consoles are set to auto-power-on when a disc goes in, and that signal takes a different path to the board than the power button does. If disc-insert works but the button doesn’t, the fault sits specifically in that connector or its cable, not in the power supply or the wider motherboard.

How the Repair Works

This is component-level rework, not a plug-and-play part swap. The damaged connector has to be desoldered from the mainboard without lifting or damaging the surrounding pads and traces, then a genuine replacement connector is soldered back into place and tested before the console goes back together. It’s precise, hot-air and fine-tip soldering work — the kind of job that goes wrong quickly in inexperienced hands, since the pads sit close together and the traces underneath are easy to damage with too much heat or a heavy hand.

Done properly, it’s a same-day board-level repair rather than a full motherboard replacement — and it comes with a 12-month warranty, because it’s a diagnosed, specific fault rather than a guess.

Why Choose Saved Game

Board-level expertise — this is exactly the kind of component-level fault we specialise in, not a parts-swap shop
Genuine diagnosis first — we confirm it’s the Nexus connector (and not a deeper board fault) before quoting
12-month warranty on the repair
Mail-in nationwide, or local drop-off for customers around Hull and the East Riding

Get Your Xbox Series X Fixed

Send us a message describing what’s happening — specifically whether it powers on with a disc inserted — and we’ll confirm what we think the fault is before any work starts.

📧 james@savedgame.co.uk
📞 07547 432754
📦 Start a mail-in repair

Frequently Asked Questions

What is the Nexus connector on an Xbox Series X?

It’s the small flex (FPC) connector on the mainboard that the front panel cable plugs into — the cable carrying the power button, eject button, and status LED signal. If it cracks or tears off the board, the console can’t receive the power-on signal at all.

How do I know if it’s my Nexus connector and not something else?

The telltale sign is a console that’s completely silent and dark when you press the power button, but that does power on if you insert a disc (most Xbox consoles auto-power-on when a disc is inserted). That points at the connector or its cable rather than a dead power supply or motherboard.

Can this be fixed, or does the whole motherboard need replacing?

It can almost always be repaired without replacing the motherboard. It’s a component-level job — removing the damaged connector and soldering a new one in its place — rather than a full board swap.

Will I lose my data if my Nexus connector is repaired?

No. This repair is entirely on the power/front-panel side of the mainboard and doesn’t touch your storage drive or saved data.

How much does the repair cost?

We charge £65 for this repair
